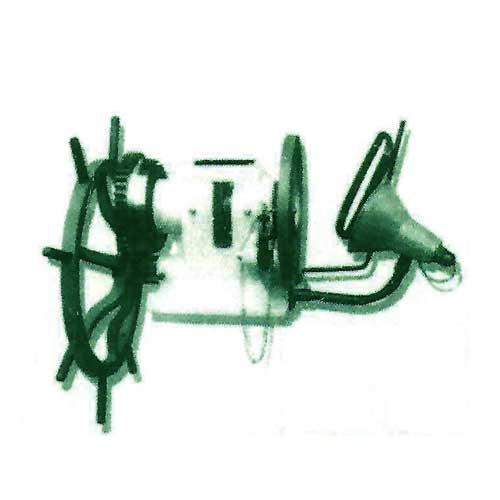

Erichsen Cupping Testing Machine
Features:
This is Designeded to reveal the cupping qualities of metal sheets & strips and also to test the adhesion, elasticity & porosity of coats of paints or varnish by way of comparison. The appearance of the material after fracture gives on indication of the grain structure of the material & also of its constitution to some extent. The Machine conforms to IS:10175-1982.
Features:
| Sample Width | 70 to 90 mm |
| Sample Thickness | 0.1 to 2 mm |
| L.C. of Micrometric Device | 0.05 |
| One turn of hand wheel | 1.25 mm advance of penetrator |
| Overall Dimensions (Approx) | 450 x 500 x 500 mm |
| Weight (Approx) | 50 kgs |
